Main Uses：
This machine is suitable for pharmaceutical, chemical, food and other industries the proportion of powder and small particles ranging from coarse classification, and can sift out the material continuously.

Structural Characteristics：

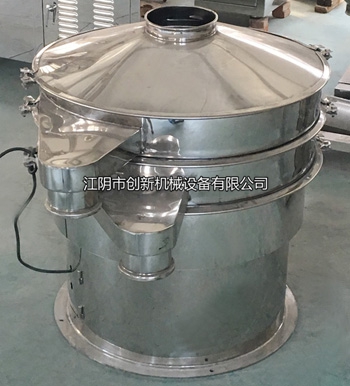

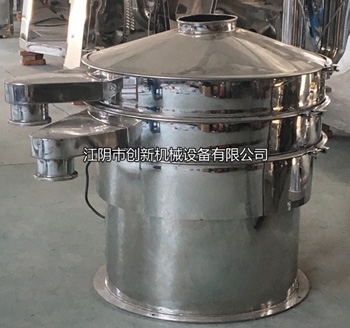

Machine from the vertical vibrating motor, screen bottom, the grid, sieve powder rooms, and other fastening rubber vibration into one bowl. When used, the vibration of the ball grid from time to time on the beat net surface, so that net surface is not prone to clogging. The machine can be used for single or multi-grade use, compact structure, easy operation and maintenance, smooth operation, low noise, large material handling, fineness is small, the advantages of applicability.

Technical Parameters:

Specification	400Type	600Type	800Type	1000Type	1200Type
Capacity (kg / h)	100-800	200-1500	200-2500	500-3500	800-5000
Mesh sieve (mesh)	2-200
Vibration frequency (times / min)	1500
Power (kw)	0.4	0.55	0.75	1.1	1.5
Weight (kg)	200	250	300	380	450
Dimensions(L × W × H)	600×500×1100	800×700×1150	1100×9500×1150	1200×1100×1250	1380×1300×1280
