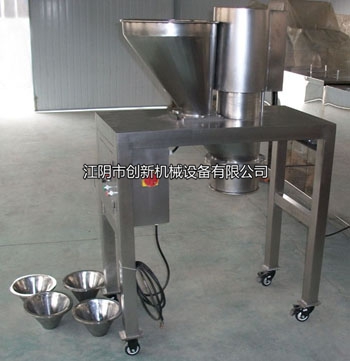

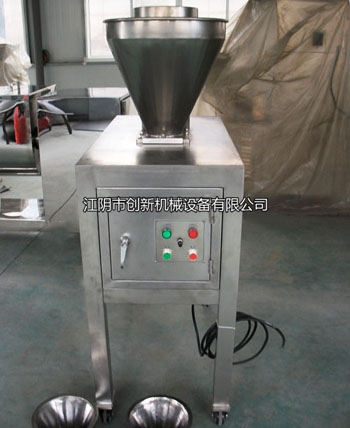

FZ Crushing Granulator

Details：

main purposes: Pharmaceuticals: raw material crushing, wet material granulation, dry material whole, the size of undesirable pills may require recycling requirements of granularity whole.
Food: Biscuits crushed recycled.
Other: coarse materials like crushed and whole, crushed and whole lump of raw materials, decomposition agglomeration of raw materials.
Working principle: crushing the raw material into the feed port and granulating machine, falls into a conical studio, by the rotation of the rotary blade material from the cyclone action, the particles are thrown to the centrifugal force and the mesh surface, and with the rotational high-speed rotation and the screen surface to produce shearing knife, rotating knife between the particles and the screen was crushed into small particles and discharged through the screen. Pulverized particle size, the number of the screen, the spacing between the rotary blade and the screen and to regulate the speed of the rotation speed.
Technical Parameters：

型號	150型	300型	450型	700型	1000型
生產能力（kg/h)	15-150	30-300	45-450	70-700	100-1000
粒度（目）	6-80
傳動座溫升（℃）	< 30
調速范圍	單速2800rpm變頻調速300-3600rpm
電機功率	1.1	1.5	2.2	3	5.5
外形尺寸（長×寬×高）（mm）	810×445×1345	810×445×1345	920×445×1430	1000×500×1530	1100×560×1785
出料門至地面高度	650	650	690	690	720
